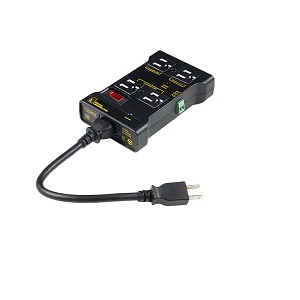

IoT Power Relay

This IoT Power Relay allows you to safely control an outlet device that operates at 3--48VDC or 12--120VAC. Each IoT Power Relay features a single input (from the included C13 power cable) to four outputs: one usually on, one always on, and two normally off. The durable SPDT control relay is rated at 30/40A for 400,000 operations.

Specifications

• Universal control voltage 3-60VDC or 12-120VAC
• Optical isolation, relay hysteresis, and de-bounce protection add safety
• A large MOV clamps surges for clean 90-140VAC power
• The durable SPDT control relay is rated at 30/40A, >400,000 operations at 12A or 2 million+ operations at 5A
• A 12A thermal safety circuit breaker switch prevents overloads
• Mounting tab with two screw holes
• Dimensions: 170mm x 95mm x 35mm (6.69in x 3.74in x 1.37in)

All Sensors work with our Wireless Sensor Node, STS-Node, allowing for easy connection to our IoT Platform.
